| BEaTriX: the Beam Expander Testing X-ray facility | |
|
BEaTriX+ |
|
|
The original BEaTriX layout was tailored to the NewAthena MMs, which have a fixed focal length of 12 m. The BEaTriX+ project, funded by INAF, extends the operational versatility of the facility by enabling a tunable focal length in the range from ∼1.4 m to ∼14 m. The variable focal length is enabled by a modular vacuum tube, connecting the experimental chamber with the detector tower, and by stand-alone module, hosting the focal plane detector and the high-precision motor for focusing, that can be placed at different position.
|
|
 |
|

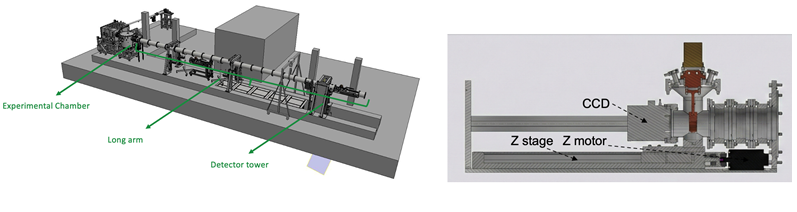

| Left: The modular long arm connecting the experimental chamber to the detector tower - Right: The stand-alone module hosting the focal plane detector and the stage for focusing. | |
 |
|

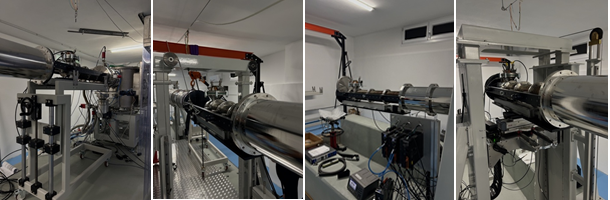

| The stand-alone module mounted at the shortest, intermediate, extreme and NewAthena configuration. | |
|
The wider range opens the calibration capability of the facility to a much broader class of X-ray optics: from short-focal-length nested optics for cubesats and small missions, to long-focal-length optics for future astrophysical observatories. |
|
