INSTRUMENT
Main characteristics
SOXS mounted at the NTT flange (left) and the overall structure (right).
UV-VIS ARM
Overall optical design of the UV-VIS arm

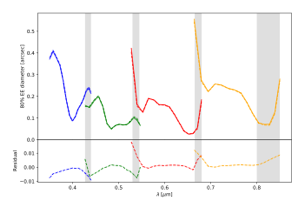

90% Enslitted Energy (left) and resolution power (right) of the SOXS UV_VIS arm

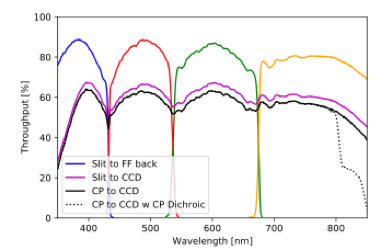

Spectral format of the four sub-camera spectrum (left) and the overall efficiency of the UV-VIS arm (right).

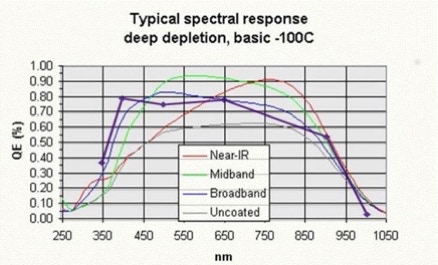

We will adopt an e2V CCD44-82 2kx4k (green curve)
NIR ARM

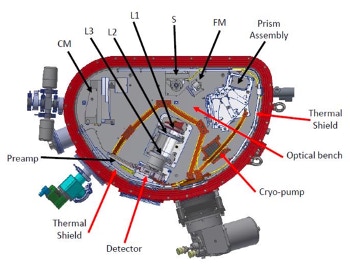

NIR arm design

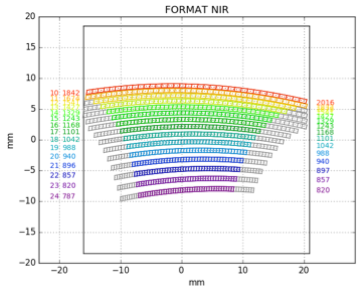

Order characteristics (left) and their fit within the NIR array (right).

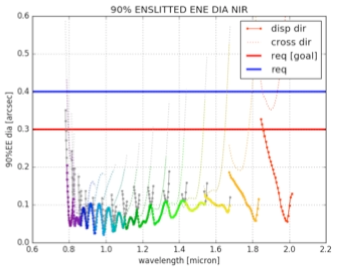

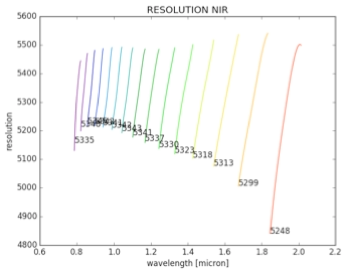

90% enslitted energy (left) and resolution as a function of wavelength for the NIR arm.
Overall efficiency of the NIR arm
We will adopt the Teledyne HAWAII 2RG 2Kx2K with cut-off at 2.5 μm and substrate removal
RESPONSABILITIES
Italy ~ 49% (Common Path, NIR-arm, cryogenics, integration, management, etc.)
Israel ~24% (UV-VIS arm optics and mechanics)
UK ~8% (VIS-CCD, reduction pipeline)
Finland ~7% (Calibration Unit)
Chile ~6% (Acquisition camera)
Tel Aviv University (4%, funds)
DAWN & Aarhus University (2%, funds)
